Remarks:

① Special models and software functions can be customized

② Optional 26 million or 43 million pixel industrial camera

③ Optional telecentric parallel light source/surface coaxial light source

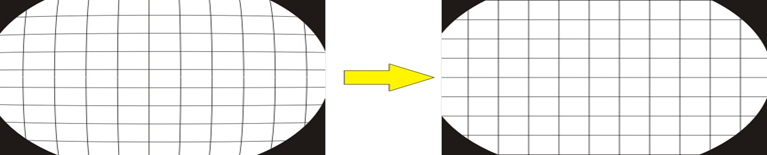

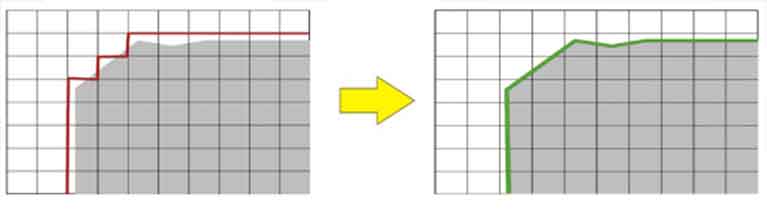

Taiwan's software advantages: Taiwan completely independent research and development, the software interface is simple, powerful, and easy to learn; the distortion correction technology independently developed by our company is used to ensure stable and accurate measurement results at various positions and angles of the field of view; the self-developed image stitching technology guarantees stitching errors Less than 0.003mm.

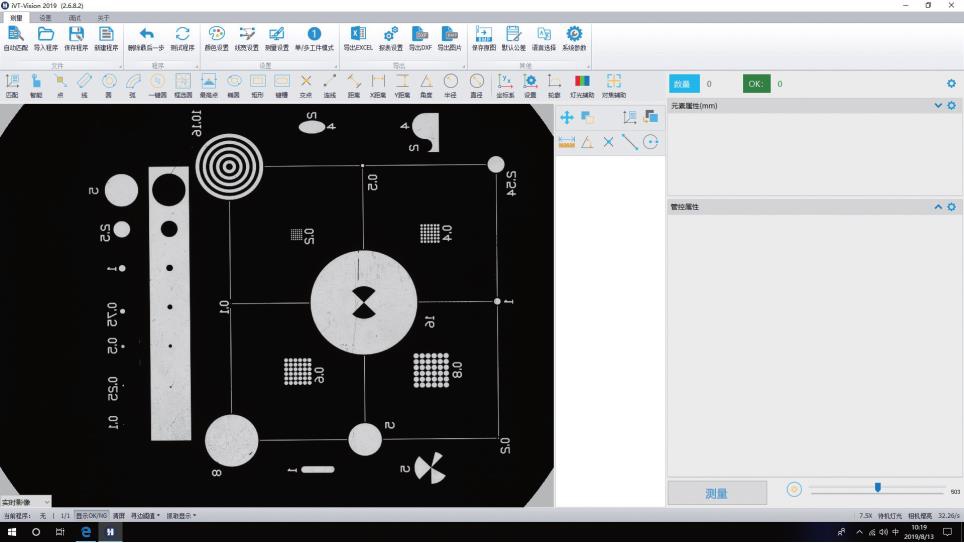

a. User program:

Automatically match the workpiece, place it arbitrarily, and measure with one button. Can automatically search for matches and call out the user program. Frame selection can be used to establish a match, multiple position frame selection combinations can be used to establish a match, measurement elements can be used to establish a match, and CAD can be imported to establish a match. A program group can be established to realize the measurement of multiple sides of the workpiece.

b. Comprehensive measurement elements:

Point, highest point, line, highest line, circle (center coordinates, radius, diameter, roundness, circumference, area, maximum radius, minimum radius), arc, rectangle (center coordinates, length, width, circumference, area) ), ellipse (center coordinates, major axis, minor axis, circumference, area), keyway (center coordinates, length, width, circumference, area), import CAD contour scanning comparison, contour PV, area comparison, cylindrical diameter, Sealing ring (calculate the radius from the circumference, the maximum radius of the sealing ring, the minimum radius, the thickness), the measurement result recalculation (maximum, minimum, average, sum), two-dimensional code recognition, barcode recognition.

c. Marking:

Distance, X distance, Y distance, radius, diameter, angle, etc.;

d. Evaluation of shape error:

Straightness and roundness.

e. Position error evaluation:

Parallelism, perpendicularity, symmetry, concentricity, and position.

f. Coordinate system conversion

Cartesian coordinates (X, Y) and polar coordinates (R, θ) can be easily selected. The basic unit mm, inch, and mil of the measured value can be converted instantly. Coordinate translation, coordinate rotation, establish a workpiece coordinate system.

g. Measured data

You can customize the EXCEL template and specify the output cell. The software comes with a CPK template, which can calculate Mean, Maximum, Minimum, Cp, Cpkl, Cpku, Cpk

h. SPC data analysis function

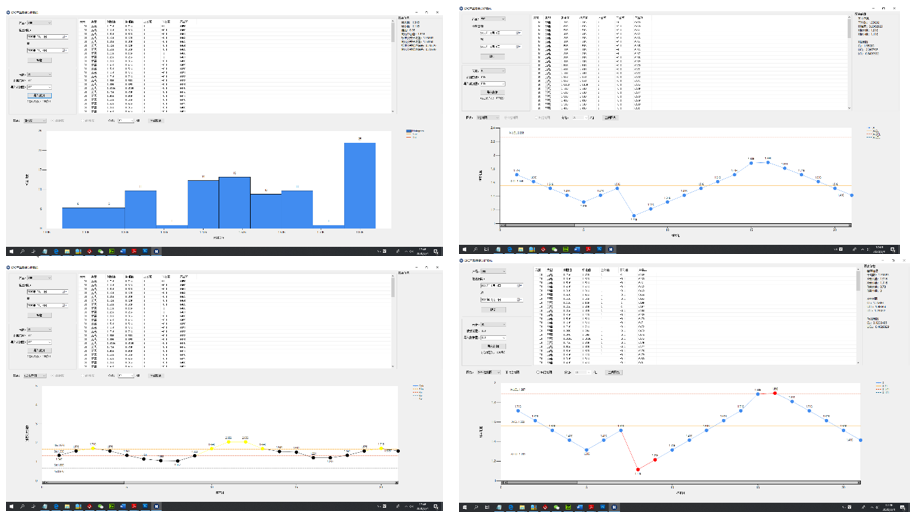

Including: histogram, Cpk trend chart, X control chart, Xbar-R control chart, Ximedian-R control chart, X-Rs control chart.

i, other

     ·Software language: multi-language is optional, language packs are open, translation modification can be defined

     ·Image and drawing area are shared, WYSIWYG, customizable: color, line width, font size, background color

     ·Focus assist, light assist function, reduce human error

     ·Pass/Fail (OK/NG), and alarm prompt, voice output: OK, NG

     ·Can quickly scan contours and export to CAD

·Optional IO card, external trigger measurement and OK NG signal output
